Water Storage ContainersCorrugated Galvanized Tanks
Large Capacity Water Storage

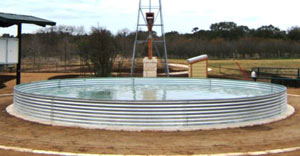

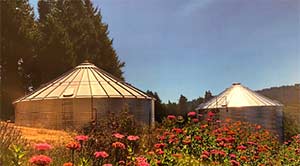

Corrugated Galvanized Tanks are sturdy bolted steel tanks that can be used for potable or non potable water storage, rainwater harvesting, irrigation and fracking. Great for any facility, business or farm these corrugated steel tanks provide long term storage when needed. Our large capacity water storage tanks range in size from 780 to 95,000 gallons. Custom sizes can be built to fit specific applications or site requirements.
Galvanized Steel Tanks come in multiple pieces for easy and economical shipping. All pieces are cut from the same sheet of steel allowing them to fit tightly together for secure liquid storage. A 30 mil PVC liner is also included for extra protection against leakage and keeps the water from contacting the steel.
The galvanized water tanks are also the ideal tank for locations with high seismic activity, hurricanes and snow storms. Specific accessories and models can be made to fit these situations.
|
|
Features:

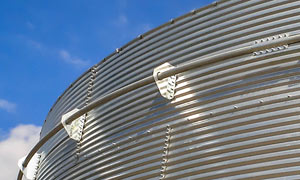

- Galvanized Corrugated Steel Sheets (Help Prevent Corrosion)
- 30 Mil PVC Liner (Potable and Non Potable Available)
- Wind Rated at 165mph
- Inlet and Outlet for Overflow
- Removable Filter
- Accessible Hatch
- Earthquake and Hurricane Units Available
Accessories/Add Ons:
- Side Ladder
- OSHA Cages
- Roof Rails and Guards
- Platforms
- Seismic Anchors
Benefits:
- Ships in Pieces (1% of Assembled Size)
- Large Storage Capacities
- Light Weight
- More Economical than a Welded Steel Tank
- Resistant to Wind, Snow and Seismic Activity
- Multiple Ways to Customize and Enhance your Tank
Applications
- Rain Water Harvesting
- Potable/Non Potable Water Storage
- Fire Water Storage
- Secondary Containment
- Water Treatment Tanks
- Feed and Grain Storage
- Agricultural Water Storage
|
|
Corrugated Galvanized Tanks Technical Specifications |
||||
|---|---|---|---|---|
Part Number |
Volume |
Diameter |
Eave Height |
Total Height |
QC601 |
787 G
(2979 L) |
6'(1.8m) |
3'8"(1.1m) |
5'2"(1.6m) |
QC602 |
1635 G
(6189 L) |
6'(1.8m) |
7'3"(2.2m) |
8'9"(2.7m) |
QC603 |
2402 G
(9093 L) |
6'(1.8m) |
10'9"(3.3m) |
12'4"(3.8m) |
QC604 |
3169 G
(11996 L) |
6'(1.8m) |
14'4"(4.4m) |
15'10"(4.8m) |
QC605 |
3937 G
(14903 L) |
6'(1.8m) |
17'11"(5.5m) |
19'11"(6.1m) |
QC606 |
4704 G
(17807 L) |
6'(1.8m) |
21'5"(6.5m) |
23'5"(7.1m) |
QC901 |
1827 G
(6916 L) |
9'(2.7m) |
3'8"(1.1m) |
6'6"(2m) |
QC902 |
3553 G
(13450 L) |
9'(2.7m) |
7'3"(2.2m) |
9'7"(2.9m) |
QC903 |
5280 G
(19987 L) |
9'(2.7m) |
10'9"(3.3m) |
13'7"(4.1m) |
QC904 |
7006 G
(26521 L) |
9'(2.7m) |
14'4"(4.4m) |
17'2"(5.2m) |
QC905 |
8733 G
(33058L) |
9'(2.7m) |
17'11"(5.5m) |
20'9"(6.3m) |
QC906 |
10459 G
(39592 L) |
9'(2.7m) |
21'5"(6.5m) |
24'3"(7.4m) |
QC1201 |
3169 G
(11996 L) |
12'(3.7m) |
3'8"(1.1m) |
7'3"(2.2m) |
QC1202 |
6239 G
(23617 L) |
12'(3.7m) |
7'3"(2.2m) |
10'9"(3.3m) |
QC1203 |
9308 G
(35235 L) |
12'(3.7m) |
10'9"(3.3m) |
14'4"(4.4m) |
QC1204 |
12378G
(46856 L) |
12'(3.7m) |
14'4"(4.4m) |
17'11"(5.5m) |
QC1205 |
15447 G
(58473 L) |
12'(3.7m) |
17'11"(5.5m) |
21'5"(6.5m) |
QC1206 |
18516 G
(70091 L) |
12'(3.7m) |
21'5"(6.5m) |
25'0"(7.6m) |
QC1501 |
4896 G
(18533 L) |
15'(4.6m) |
3'8"(1.1m) |
8'1"(2.5m) |
QC1502 |
9692 G
(36688 L) |
15'(4.6m) |
7'3"(2.2m) |
11'8"(3.6m) |
QC1503 |
14488 G
(54843 L) |
15'(4.6m) |
10'9"(3.3m) |
15'2"(4.6m) |
QC1504 |
19284 G
(72998 L) |
15'(4.6m) |
14'4"(4.4m) |
18'9"(5.7m) |
QC1505 |
24180 G
(91531 L) |
15'(4.6m) |
17'11"(5.5m) |
22'4"(6.8m) |
QC1506 |
28876 G
(109308 L) |
15'(4.6m) |
21'5"(6.5m) |
25'10"(7.9m) |
QC1801 |
7106 G
(26899 L) |
18'(5.5m) |
3'8"(1.1m) |
8'11"(2.7m) |
|
|
Corrugated Galvanized Tanks |
||||
|---|---|---|---|---|
Part Number |
Volume (gallons/liters) |
Diameter |
Eave Height |
Shell Height |
QC1802 |
13912 G
(52663 L) |
18'(5.5m) |
7'3"(2.2m) |
12'6"(3.8m) |
QC1803 |
20819 G
(78808 L) |
18'(5.5m) |
10'9"(3.3m) |
16'11"(5.2m) |
QC1804 |
27725 G
(104951 L) |
18'(5.5m) |
14'4"(4.4m) |
19'7"(6m) |
QC1805 |
34631 G
(131093 L) |
18'(5.5m) |
17'11"(5.5m) |
23'2"(7.1m) |
QC1806 |
41537 G
(157235 L) |
18'(5.5m) |
21'5"(6.5m) |
26'9"(8.2m) |
QC2101 |
9500 G
(35961L) |
21'(6.4m) |
3'8"(1.1m) |
9'10"(3m) |
QC2102 |
18900 G
(71544 L) |
21'(6.4m) |
7'3"(2.2m) |
13'4"(4.1m) |
QC2103 |
28300 G
(107127 L) |
21'(6.4m) |
10'9"(3.3m) |
16'11"(5.2m) |
QC2104 |
37700 G
(142710 L) |
21'(6.4m) |
14'4"(4.4m) |
20'6"(6.2m) |
QC2105 |
47100 G
(178293 L) |
21'(6.4m) |
17'11"(5.5m) |
24'0"(7.3m) |
QC2106 |
56501 G
(213880 L) |
21'(6.4m) |
21'5"(6.5m) |
27'7"(8.4m) |
QC2401 |
12378 G
(46856 L) |
24'(7.3m) |
3'8"(1.1m) |
10'8"(3.3m) |
QC2402 |
24655 G
(93329 L) |
24'(7.3m) |
7'3"(2.2m) |
14'3"(4.3m) |
QC2403 |
36933 G
(139807 L) |
24'(7.3m) |
10'9"(3.3m) |
17'9"(5.4m) |
QC2404 |
49211 G
(186284 L) |
24'(7.3m) |
14'4"(4.4m) |
21'4"(6.5m) |
QC2405 |
61488 G
(232757 L) |
24'(7.3m) |
17'11"(5.5m) |
24'10"(7.6m) |
QC2406 |
73766 G
(279235 L) |
24'(7.3m) |
21'5"(6.5m) |
28'5"(8.7m) |
QC2701 |
15639 G
(59200 L) |
27'(8.2m) |
3'8"(1.1m) |
11 '0"(3.4m) |
QC2702 |
31178 G
(118022 L) |
27'(8.2m) |
7'3"(2.2m) |
14'6"(4.4m) |
QC2703 |
46717 G
(176843 L) |
27'(8.2m) |
10'9"(3.3m) |
18'1"(5.5m) |
QC2704 |
62256 G
(235665 L) |
27'(8.2m) |
14'4"(4.4m) |
21'8"(6.6m) |
QC2705 |
77759 G
(294350 L) |
27'(8.2m) |
17'11"(5.5m) |
25'2"(7.7m) |
QC2706 |
93334 G
(353308 L) |
27'(8.2m) |
21'5"(6.5m) |
28'9"(8.8m) |
QC3001 |
19284 G
(72998 L) |
30'(9.1m) |
3'8"(1.1m) |
11'10"(3.6m) |
QC3002 |
38468 G
(145617 L) |
30'(9.1m) |
7'3"(2.2m) |
15'5"(4.7m) |
QC3003 |
57652 G
(218237 L) |
30'(9.1m) |
10'9"(3.3m) |
18'11"(5.8m) |
QC3004 |
76835 G
(290852 L) |
30'(9.1m) |
14'4"(4.4m) |
22'6"(6.9m) |
QC3005 |
96019 G
(363471 L) |
30'(9.1m) |
17'11"(5.5m) |
26'1"(8m) |
QC3006 |
115203 G
(436091 L) |
30'(9.1m) |
21'5"(6.5m) |
29'7"(9m) |
QC3301 |
23312 G
(88246 L) |
33'(10.1m) |
3'8"(1.1m) |
12'8"(3.9m) |
QC3302 |
46525 G
(176116 L) |
33'(10.1m) |
7'3"(2.2m) |
16'3"(5m) |
QC3303 |
69737 G
(263983 L) |
33'(10.1m) |
10'9"(3.3m) |
19'10"(6m) |
QC3304 |
92950 G
(351854 L) |
33'(10.1m) |
14'4"(4.4m) |
23'4"(7.1m) |
QC3305 |
116162 G
(439721 L) |
33'(10.1m) |
17'11"(5.5m) |
26'11"(8.2m) |
Corrugated Galvanized Tanks |
||||
Part Number |
Volume (gallons/liters) |
Diameter |
Eave Height |
Shell Height |
QC3306 |
139375 G
(527592 L) |
33'(10.1m) |
21'5"(6.5m) |
30'6"(9.3m) |
QC3601 |
27725 G
(104951 L) |
36'(11m) |
3'8"(1.1m) |
137"(4.1m) |
QC3602 |
55349 G
(209519 L) |
36'(11m) |
7'3"(2.2m) |
17'1"(5.2m) |
QC3603 |
82874 G
(313712 L) |
36'(11m) |
10'9"(3.3m) |
20'8"(6.3m) |
QC3604 |
110599 G
(418663 L) |
36'(11m) |
14'4"(4.4m) |
24'3"(7.4m) |
QC3605 |
138224 G
(523235 L) |
36'(11m) |
17'11"(5.5m) |
2T9"(8.5m) |
QC3606 |
165848 G
(627803 L) |
36'(11m) |
21'5"(6.5m) |
31'4"(9.6m) |
QC3901 |
33521 G
(126891 L) |
39'(11.9m) |
3'8"(1.1m) |
15'1"(4.6m) |
QC3902 |
64941 G
(245828 L) |
39'(11.9m) |
7'3"(2.2m) |
18'8"(5.7m) |
QC3903 |
97362 G
(368555 L) |
39'(11.9m) |
10'9"(3.3m) |
22'2"(6.8m) |
QC3904 |
129683 G
(490904 L) |
39'(11.9m) |
14'4"(4.4m) |
25'9"(7.8m) |
QC3905 |
462204 G
(1749632 L) |
39'(11.9m) |
17'11"(5.5m) |
29'4"(8.9m) |
QC3906 |
194624 G
(736732 L) |
39'(11.9m) |
21'5"(6.5m) |
32'10"(10m) |
QC4201 |
37700 G
(142710 L) |
42'(12.8m) |
3'8"(1.1m) |
16'0"(4.9m) |
QC4202 |
75301 G
(285045 L) |
42'(12.8m) |
7'3"(2.2m) |
19'7"(6m) |
QC4203 |
112901 G
(427377 L) |
42'(12.8m) |
10'9"(3.3m) |
23'1"(7m) |
QC4204 |
150501 G
(569708 L) |
42'(12.8m) |
14'4"(4.4m) |
26'8"(8.1m) |
QC4205 |
188102 G
(712044 L) |
42'(12.8m) |
17'11"(5.5m) |
30'3"(9.2m) |
QC4206 |
225702 G
(854375 L) |
42'(12.8m) |
21'5"(6.5m) |
33'9"(10.3m) |
QC4801 |
49211 G
(186284 L) |
48'(14.6m) |
3'8"(1.1m) |
17'8"(5.4m) |
QC4802 |
98321 G
(372185 L) |
48'(14.6m) |
7'3"(2.2m) |
21'3"(6.5m) |
QC4803 |
47432 G
(179550 L) |
48'(14.6m) |
10'9"(3.3m) |
24'9"(7.5m) |
QC4804 |
196543 G
(743996 L) |
48'(14.6m) |
14'4"(4.4m) |
28'4"(8.6m) |
QC4805 |
245653 G
(929898 L) |
48'(14.6m) |
17'11"(5.5m) |
31'11"(9.7m) |
QC4806 |
294746 G
(1115735 L) |
48'(14.6m) |
21'5"(6.5m) |
35'5"(10.8m) |
Installing a Corrugated Galvanized Tank
Corrugated Tanks are easy to install and typically do not require the need to weld the tank together. These Steel Tanks are typically installed through a team of experts/technicians who are familiar with the tank's design and construction. If desired, manuals can be provided to help assist with on-site installation. Two technicians can typically install a tank in a day or less. Concrete slabs or pads are recommended to help support the size and the weight of the tank.
Please contact our team at +1-772-646-0597 for more information or to discuss installation requirements for your site.
