Frame Dump Tank

Portable Fire Fighting Water Tanks

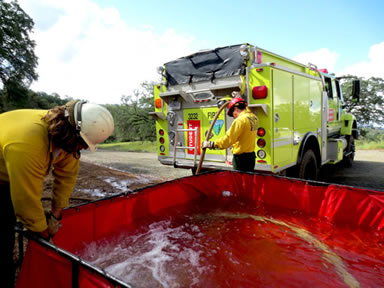

open top frame dump tankOpen-Top Dump Tanks, also known as Frame Dump Tanks are portable fire fighting water tanks designed for quick setup during wildland fire or forest fire fighting. Tanks are built with a folding frame design that provides quick setup once the tank has arrived in your location. This allows them to be quickly setup in forest areas to store water while fire fighting efforts are underway.

These tanks are made with a folding frame design that allows the units to be easily folded and unfolded. This compact design allows the tanks to be placed in fire trucks and moved quickly to a new location.


If you have questions about products, give us a call at 1-772-646-0597 or request a price quote.

USA Made Frame Tank Options

open top dump tank
  • Standard Folding Frame Tank
  • Double Folding Frame Tank
  • Skinny Frame Tank
  • Multiple Sizing Options

Typical Frame Dump Tank Features

  • Folding Frame Design
  • Heavy Duty Liner
  • 500 to 5,000 Gallon Storage Capacity
  • Steel or Aluminum Frames

Benefits to Using the Frame Dump Tank

  • frame dump tankCompact Design for Transportation or Storage
  • Quick Deployment in Location
  • Open Top for Fast Filling and Water Extraction
  • Perfect for Emergency Operations
  • Easy to Carry and Setup
  • Rigid yet Stable Water Storage
  • Portable Water Tanks

Standard Applications

  • frame dump tankEmergency Water Storage
  • Fire Fighting Water Supply
  • Wildland Fire Fighting
  • Forest Fire Suppression


If you have questions about products, give us a call at 1-772-646-0597 or request a price quote.

Single Fold Frame Tank Technical Specifications

Gallons Deployed Size Single Folded Steel Frame (Weight lbs.) Aluminum Frame (Weight lbs.)
500 5'8" x 5'8" x 29" 7" x 5'8" x 29" 90 68
750 7' x 7' x 29" 7" x 7' x 29" 97 79
1,000 8'3" x 8'3" x 29" 7" x 8'3" x 29" 116 96
1,500 10'3" x 10'3" x 29" 7" x 10'3" x 29" 138 109
2,100 11'3" x 11'3" x 29" 7" x 11'3" x 29" 154 124
2,500 12'3" x 12'3" x 29" 7" x 12'3" x 29" 169 135
3,000 13'3" x 13'3" x 29" 7" x 13'3" x 29" 185 149
3,500 14'3" x 14'3" x 29" 7" x 14'3" x 29" 205 167
4,000 15'3" x 15'3" x 29" 7" x 15'3" x 29" 223 178
5,000 17'3" x 17'3" x 29" 7" x 17'3" x 29" 269 215
* Large Capacity and Custom Design Frame Dump Tanks Available Upon Request
Fittings: Aluminum, Polypropylene, Camlock, and Storz Available

Double Folding Frame Tank Technical Specifications

Gallons Deployed Size Double Folded Steel Frame (Weight lbs.) Aluminum Frame (Weight lbs.)
500 5'8" x 5'8" x 29" 16" x 2'11" x 29" 90 68
750 7' x 7' x 29" 16" x 3'7" x 29" 97 79
1,000 8'3" x 8'3" x 29" 16" x 4'3" x 29" 116 96
1,500 10'3" x 10'3" x 29" 16" x 5'3" x 29" 138 109
2,100 11'3" x 11'3" x 29" 16" x 5'9" x 29" 154 124
2,500 12'3" x 12'3" x 29" 16" x 6'3" x 29" 169 135
3,000 13'3" x 13'3" x 29" 16" x 6'9" x 29" 185 149
3,500 14'3" x 14'3" x 29" 16" x 7'3" x 29" 205 167
4,000 15'3" x 15'3" x 29" 16" x 7'9" x 29" 223 178
5,000 17'3" x 17'3" x 29" 16" x 8'9" x 29" 269 215
*Larger Capacity and Custom Design Available Upon Request
Fittings: Aluminum, Polypropylene, Camlock, and Storz Available
